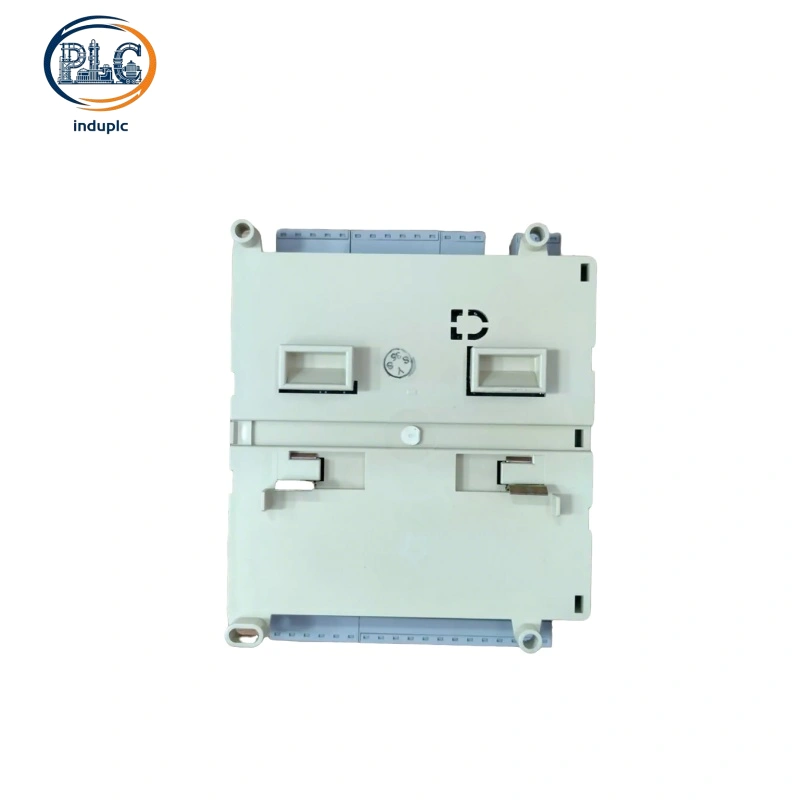

ABB 07AI91 Analog Input Module Technical Reference

1. Core Technical Specifications

Input Channel Count：8 channels Supported Signal Types：4–20 mA current / 0–10 V DC voltage Conversion Resolution：12-bit Full-scale Accuracy：±0.2% F.S. Galvanic Isolation Voltage：250 VAC (channel-to-bus) Operating Temperature Range：-20℃ ~ +60℃ Mounting Standard：DIN rail compatible Matched Control System：ABB AC31 series PLC

2. Regional Deployment & Industrial Applications

Western European discrete manufacturing facilities deploy ABB 07AI91 for conveyor belt speed sensor signal acquisition. Middle East oil and gas upstream projects install ABB 07AI91 to capture downhole pressure and temperature analog data in high-dust, high-temperature field stations. Southeast Asian municipal wastewater treatment plants integrate matching analog input units for continuous flow and liquid level monitoring across processing pools. All relevant units comply with CE and UL industrial safety standards for global cross-region deployment.

3. Compatibility & Expandability

Same-brand System Integration

ABB 07AI91 natively connects to ABB AC31 series PLC CPU units via dedicated backplane bus. No extra adapter modules are required for pairing with ABB AC31 expansion racks and dedicated power supply units. Parameter configuration runs directly on ABB Advant engineering software to cut on-site commissioning time.

Third-party Hardware Compatibility

Non-ABB control systems require external Modbus RTU conversion gateways to read data from ABB 07AI91. Standard analog signal input specifications support direct connection with most mainstream industrial field sensors from third-party brands. Direct backplane docking with non-ABB PLCs is not available due to proprietary communication protocol limits.
