1. Core Technical Parameters

Backplane Power：5 VDC

Analog Input Channels：16 isolated channels

Field Signal Input：4–20 mA / 0–10 V

Channel Isolation Grade：1500 VDC group isolation

Sampling Frequency：10 Hz per channel

Operating Temperature：0℃ ~ +70℃

Applicable Rack：ABB Symphony INFI90 Harmony chassis

2. Compatibility & Expandability

Same-brand Compatibility

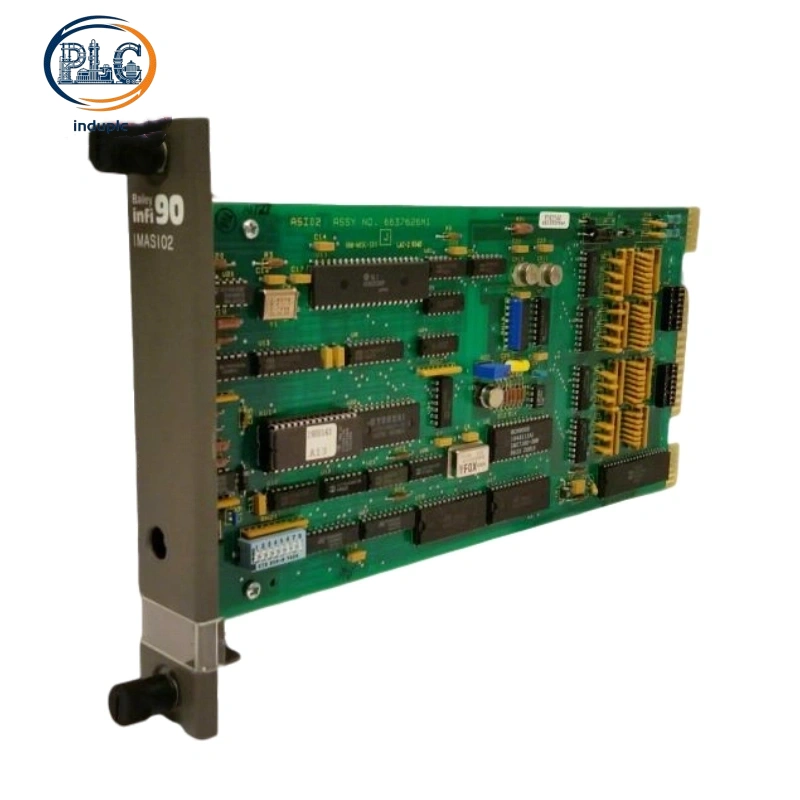

ABB IMASI02 is a multi-channel analog acquisition card designed for ABB Symphony distributed control racks. Plant instrument crews arrange multiple ABB IMASI02 on cabinet backplanes to expand analog signal collection capacity for chemical and energy process lines. ABB IMASI02 occupies single standard rack slots and transmits digitized field readings to ABB INNPM12 network processors without external signal conditioning terminals. Front panel fault LEDs assist maintenance staff to check operating status of ABB IMASI02 and sustain stable data acquisition from site-mounted ABB flow and pressure transmitters.

Cross-brand Compatibility

Customized Controlway internal bus and unique backplane pinout block direct hardware matching of ABB IMASI02 with third-party control frames. Extra signal transition terminal bases are required to create signal links connecting ABB IMASI02 to Siemens or Schneider PLC master units. Industry-standard 4–20mA analog signal norms support ABB IMASI02 to collect measurement data from most off-brand field sensors without internal circuit reconstruction.

3. Lifecycle Cost Analysis

Service cycle of ABB IMASI02 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Channel linearity calibration and internal dust cleaning for ABB IMASI02 costs 31 USD per year, total 10-year maintenance expense: 310 USD

Spare part replacement cost: Analog conversion circuit aging damage of ABB IMASI02 generally occurs once every 8 years, single spare module price: 412 USD, total replacement expense within 10 years: 412 USD

Retrofit expense saving: Original field signal cable harness fully fits ABB IMASI02 during DCS cabinet upgrading projects, saving 244 USD extra wiring labor cost compared with incompatible substitute analog input modules

Total cumulative running cost for single ABB IMASI02 across ten service years: 478 USD
