1. Core Technical Parameters

Backplane Power：24 VDC

Digital Input Channels：16 channels

Input Signal Level：24 VDC sink/source

Channel Isolation：Group-wise 2000 VAC

Response Delay：≤ 0.5 ms

Operating Temperature：-20℃ ~ +70℃

Matching Terminal Unit：ABB TU830 series

2. Compatibility & Expandability

Same-brand Compatibility

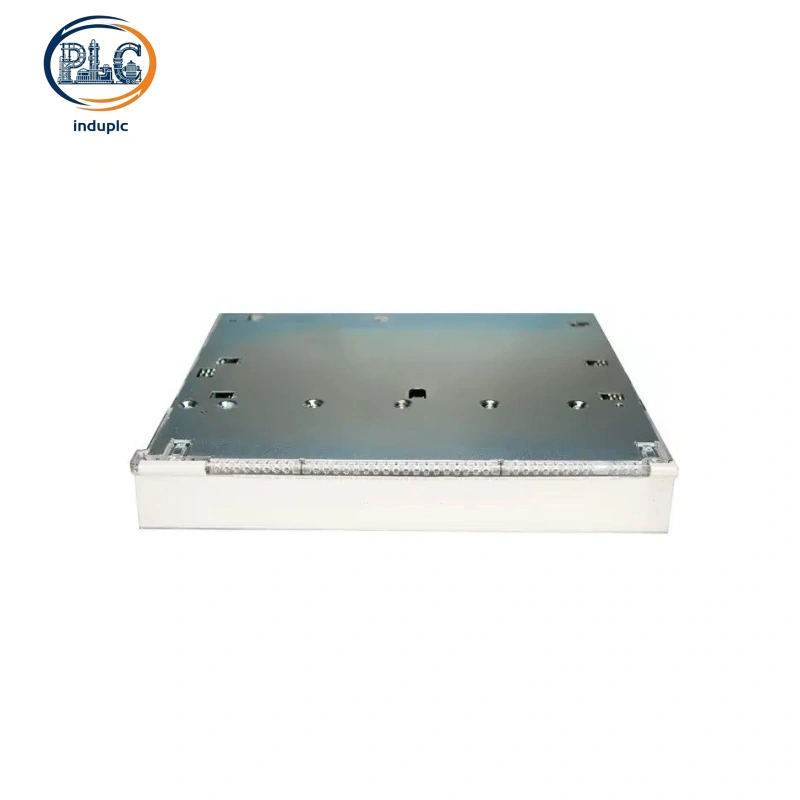

ABB DI636 is high-density digital input module belonging to ABB S800 I/O product line. On-site automation assemblers install multiple ABB DI636 on rack backplanes to expand digital signal acquisition points for factory safety interlock circuits. ABB DI636 snaps onto standard single rack slots and transmits switch status data to ABB PM856 series CPU without extra signal transfer adapters. Front panel channel diagnostic LEDs support real-time status monitoring so ABB DI636 maintains stable signal collection from ABB proximity switches and safety relays.

Cross-brand Compatibility

Exclusive S800 backplane bus architecture stops direct physical matching of ABB DI636 with third-party PLC racks. External signal transition terminal bases are necessary to build signal links connecting ABB DI636 to Siemens and Schneider control hardware. Standard 24VDC digital input specification allows ABB DI636 to capture contact signals from most aftermarket limit switches with no internal circuit modification.

3. Lifecycle Cost Analysis

Service cycle of ABB DI636 lasts 10 years, exchange rate:1USD=7.2CNY, purchase and installation costs are excluded from all cost statistics

Annual routine maintenance cost: Channel contact signal inspection and internal dust clearance for ABB DI636 costs 27 USD per year, total 10-year maintenance expense: 270 USD

Spare part replacement cost: Input optocoupler aging failure of ABB DI636 generally takes place once every 8 years, single spare module price: 364 USD, total replacement expense within 10 years: 364 USD

Retrofit expense saving: Existing field 24V wiring harness fully fits ABB DI636 during control cabinet upgrade works, saving 206 USD extra wiring labor cost compared with incompatible substitute digital input modules

Total cumulative running cost for single ABB DI636 across ten service years: 430 USD
