1. Core Technical Parameters

Backplane Supply：24 VDC

Analog Input Channels：8 configurable channels

Supported Field Signals：4–20 mA / 0–10 VDC

AD Conversion Resolution：16-bit

Galvanic Isolation Rating：2500 VAC

Operating Temperature：-20℃ ~ +70℃

Applicable Rack Platform：ABB Advant OCS / S100 I/O rack

2. Compatibility & Expandability

Same-brand Compatibility

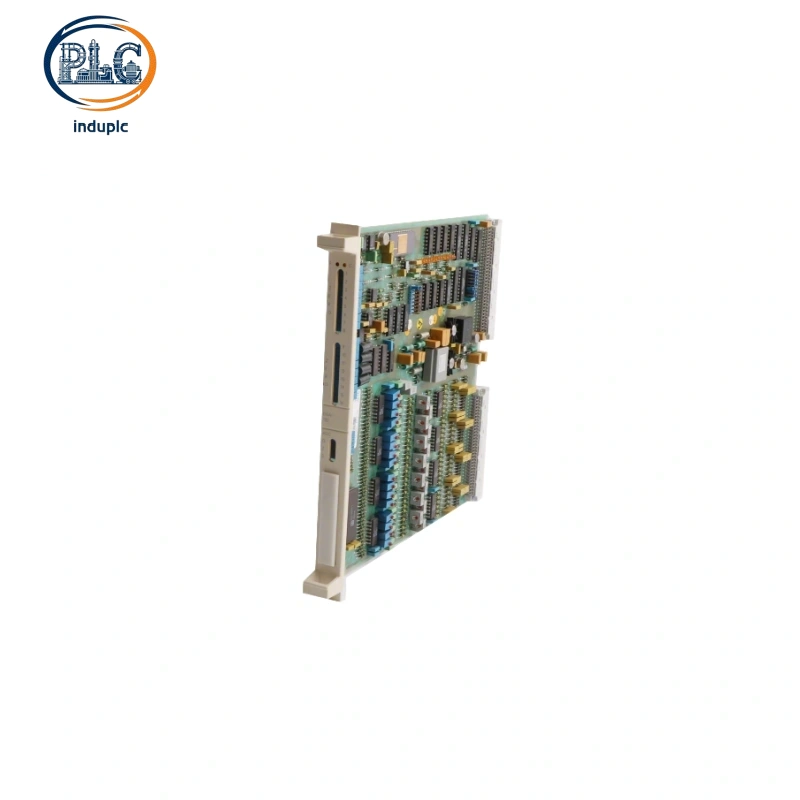

ABB DSAI130 is high-precision analog input module matching ABB Advant distributed control system. Process instrumentation technicians install multiple ABB DSAI130 on S100 rack backplanes to expand analog signal collection ports for power and chemical continuous production lines. ABB DSAI130 fits single standard rack slots and transmits converted digital measurement data to ABB AC800M series CPUs without extra signal conditioning terminal blocks. On-board self-diagnosis LED indicators allow maintenance crews to monitor channel running status of ABB DSAI130 and maintain stable data acquisition from factory-mounted ABB pressure and flow transmitters.

Cross-brand Compatibility

Proprietary S100 internal backplane bus architecture blocks direct hardware docking of ABB DSAI130 with third-party control racks. External signal transfer junction terminals become mandatory to build signal links connecting ABB DSAI130 to Siemens or Schneider PLC main units. Universal 4–20mA and 0–10V industrial analog standards enable ABB DSAI130 to capture feedback readings from most aftermarket field sensors with no internal circuit reconstruction.

3. Lifecycle Cost Analysis

Service cycle of ABB DSAI130 is fixed at 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Channel linearity calibration and internal dust clearance for ABB DSAI130 costs 31 USD per year, total 10-year maintenance expense: 310 USD

Spare part replacement cost: Analog conversion chip aging damage of ABB DSAI130 generally occurs once every 8 years, single spare module price: 412 USD, total replacement expense within 10 years: 412 USD

Retrofit expense saving: Original field analog wiring harness fully matches ABB DSAI130 during DCS cabinet renovation projects, saving 250 USD extra wiring labor cost compared with incompatible substitute analog input modules

Total cumulative running cost for single ABB DSAI130 across ten service years: 472 USD
