1. Core Technical Parameters

Input Signal Level：24 VDC

Digital Input Channels：16 isolated channels

Input Type：Sink/Source universal compatible

Group Isolation Voltage：2500 VAC

Signal Filter Delay：0.5 ms fixed

Operating Temperature：-20℃ ~ +70℃

Backplane Platform：ABB S800 I/O rack

2. Compatibility & Expandability

Same-brand Compatibility

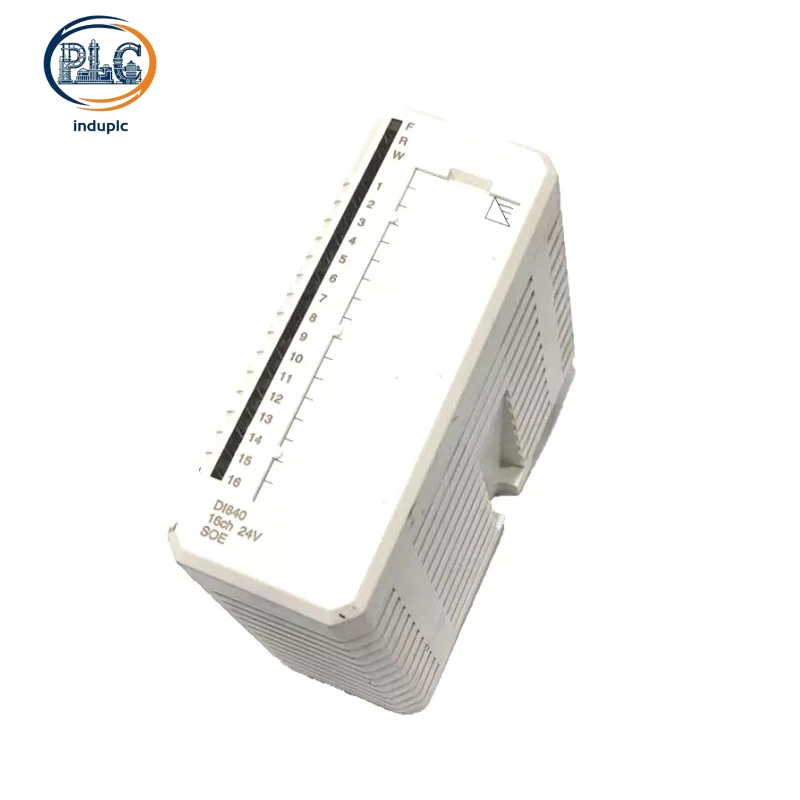

ABB DI840 is high-density digital input module matching ABB AC800M DCS system. On-site automation technicians stack multiple ABB DI840 on DSBB backplanes to expand discrete signal collection capacity for factory assembly lines. ABB DI840 locks into single rack slots and transfers switch feedback signals to ABB PM8xx CPU without extra signal relay terminal blocks. Matched TU8xx terminal units provide stable wiring contact to ensure ABB DI840 captures consistent status data from all ABB limit switches and auxiliary contactors.

Cross-brand Compatibility

Exclusive S800 backplane bus architecture stops direct physical fitting of ABB DI840 onto third-party PLC racks. External transition terminal bases are necessary to establish signal links connecting ABB DI840 with Siemens or Schneider control hosts. Standard 24VDC discrete signal specifications support ABB DI840 to read trigger signals from most aftermarket proximity sensors with no internal circuit modification.

3. Lifecycle Cost Analysis

Service cycle of ABB DI840 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Channel continuity inspection and internal dust clearance for ABB DI840 costs 28 USD per year, total 10-year maintenance expense: 280 USD

Spare part replacement cost: Input optocoupler circuit aging of ABB DI840 generally occurs once every 8 years, single spare module price: 384 USD, total replacement expense within 10 years: 384 USD

Retrofit expense saving: Existing field cable harness fully adapts to ABB DI840 during control cabinet upgrade projects, saving 226 USD extra wiring labor cost compared with incompatible substitute digital input modules

Total cumulative running cost for single ABB DI840 across ten service years: 438 USD
