1. Core Technical Parameters

Backplane Supply：24 VDC

Communication Ports：1×RS485 + 1×Ethernet/IP

Max Transmission Rate：100 Mbps Ethernet

Galvanic Isolation：2000 VAC

Operating Temperature：-40℃ ~ +70℃

Protection Grade：IP20

Applicable Rack：ABB Advant Master OCS chassis

2. Compatibility & Expandability

Same-brand Compatibility

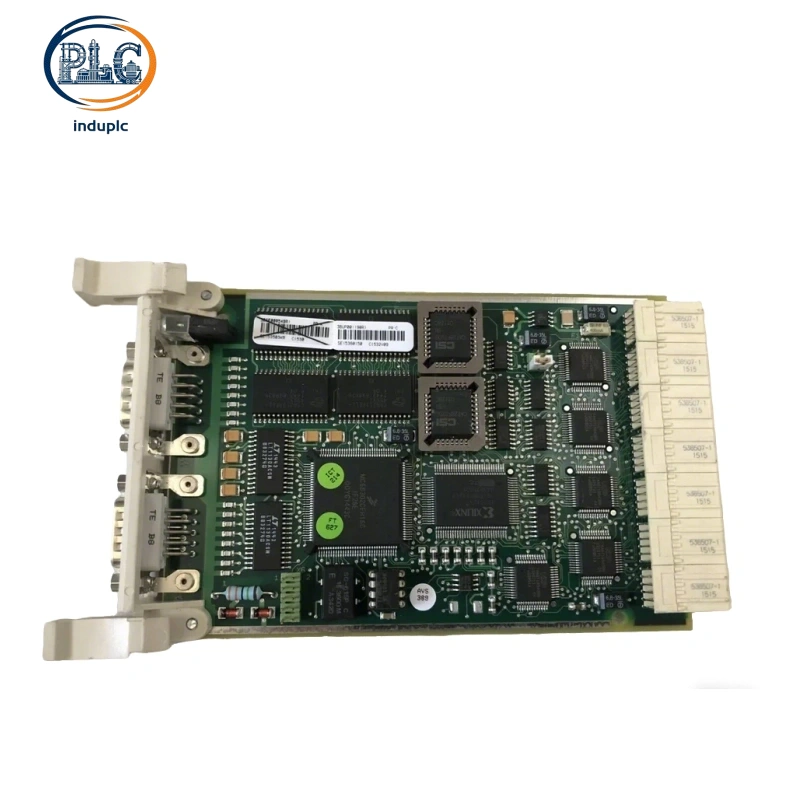

ABB CI532V09 is an Accuray dedicated communication submodule built for ABB Advant distributed control rack systems. Process automation technicians install multiple ABB CI532V09 on cabinet backplanes to expand dual-channel communication links for power generation and chemical processing facilities. ABB CI532V09 inserts standard single-width rack slots and transmits bidirectional process data with ABB Advant CPU boards and local analog/digital I/O modules without extra signal transfer terminal adapters. On-board diagnostic LED indicators allow field maintenance crews to monitor running state of ABB CI532V09 and sustain steady data interaction with factory-installed ABB flow and pressure transmitters.

Cross-brand Compatibility

Exclusive Advant proprietary backplane bus pin layout blocks direct hardware docking of ABB CI532V09 with third-party main control racks. Independent protocol conversion gateways become mandatory to build data transmission channels connecting ABB CI532V09 with Siemens and Schneider PLC hosts. Universal RS485 and Ethernet/IP industrial communication standards enable ABB CI532V09 to collect measurement feedback signals from most aftermarket field sensors with no internal circuit refitting.

3. Lifecycle Cost Analysis

Service cycle of ABB CI532V09 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Dual communication port signal calibration and internal dust clearance for ABB CI532V09 costs 36 USD per year, total 10-year maintenance expense: 360 USD

Spare part replacement cost: Main communication transceiver chip damage of ABB CI532V09 generally occurs once every 7 years, single spare module price: 462 USD, total replacement expense within 10 years: 462 USD

Retrofit expense saving: Original cabinet internal wiring layout fully matches ABB CI532V09 during DCS system renovation projects, saving 292 USD extra construction labor cost compared with incompatible substitute communication submodules

Total cumulative running cost for single ABB CI532V09 across ten service years: 534 USD
