1. Core Technical Parameters

Power Input：24 VDC

Terminal Count：32 signal screw terminals

Applicable Module Series：S800 high-density I/O

Allowed Cable Cross-section：0.4–2.5 mm²

Withstand Isolation Voltage：2500 VAC

Operating Temperature：-20℃ ~ +70℃

Mounting Structure：DSBB backplane locking base

2. Compatibility & Expandability

Same-brand Compatibility

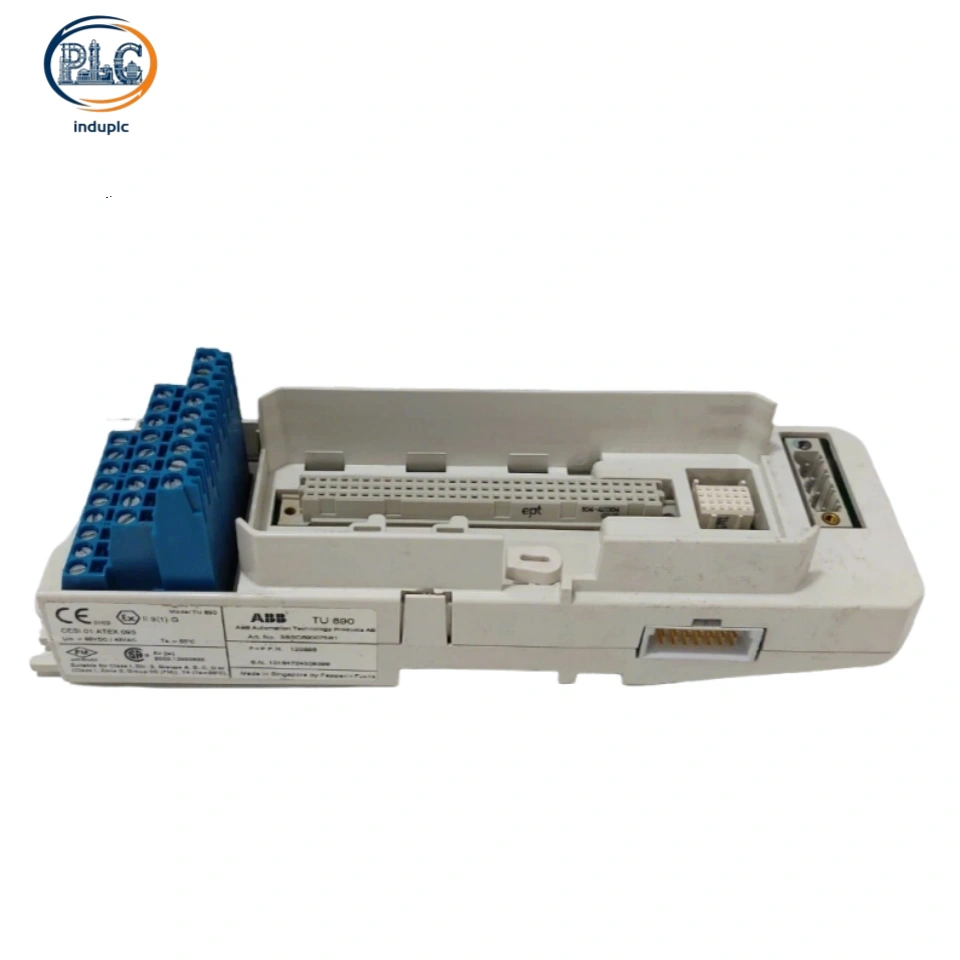

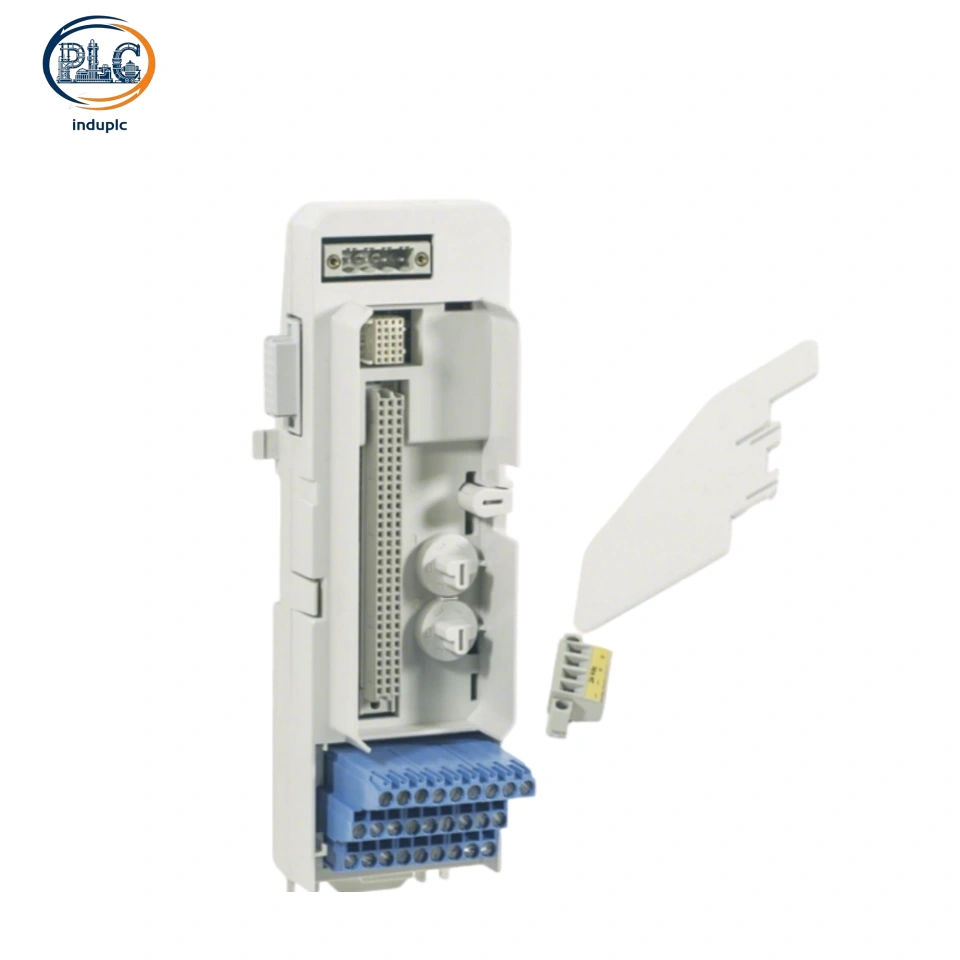

ABB TU890 is a high-density terminal unit matched for ABB S800 series multi-channel I/O modules. On-site wiring technicians arrange multiple ABB TU890 on cabinet DSBB backplanes to integrate dense field sensor and actuator wiring. ABB TU890 fastens tightly beneath high-density AI/AO/DI/DO cards and conducts signal transmission to ABB AC800M system without extra intermediate terminal strips. Locking buckle structure maintains stable electrical contact when ABB TU890 operates alongside all ABB rack-mounted control hardware in process workshops.

Cross-brand Compatibility

Exclusive S800 backplane positioning buckle blocks direct assembly of ABB TU890 on third-party PLC racks. Separate signal transfer terminal adapters are required to connect ABB TU890 with Siemens and Schneider I/O equipment. Universal screw wiring standard supports ABB TU890 to connect most off-brand 24V field instruments without structural modification to the terminal base.

3. Lifecycle Cost Analysis

Service cycle of ABB TU890 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation expenses are excluded from all cost statistics

Annual routine maintenance cost: Terminal torque inspection and dust removal for ABB TU890 costs 21 USD per year, total 10-year maintenance expense: 210 USD

Spare part replacement cost: Spring terminal elastic fatigue of ABB TU890 generally occurs once every 9 years, single spare terminal unit price: 215 USD, total replacement expense within 10 years: 215 USD

Retrofit expense saving: Reserved wire space of old cabinets fully fits ABB TU890 during system upgrade, saving 142 USD extra wiring labor cost compared with incompatible low-density alternative terminal bases

Total cumulative running cost for single ABB TU890 across ten service years: 283 USD
