1. Core Technical Parameters

Backplane Supply：24 VDC

CPU Clock Speed：1 GHz

Built-in RAM：256 MB

Program Flash Memory：512 MB

Communication Ports：2×RJ45 Ethernet

Operating Temperature：-20℃ ~ +60℃

System Platform：ABB AC500 PLC series

2. Compatibility & Expandability

Same-brand Compatibility

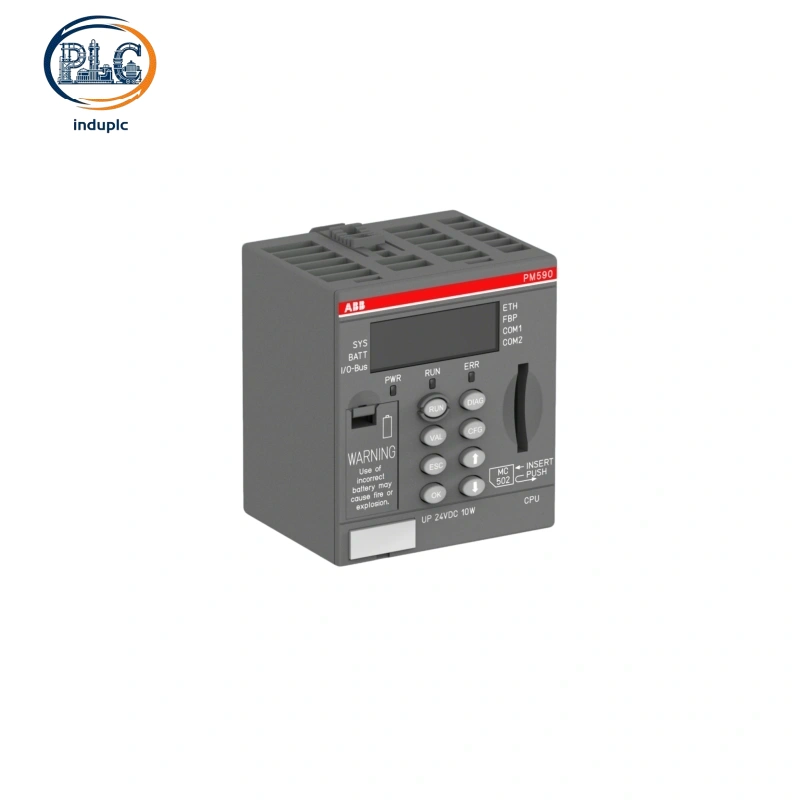

ABB PM590-ETH is the flagship Ethernet CPU unit belonging to ABB AC500 modular PLC system. Automation technicians install multiple ABB PM590-ETH on base rack backplanes to build redundant control stations for packaging and water treatment plants. ABB PM590-ETH locks into standard CPU rack slots and exchanges logic and process data with ABB DC523, AI523 and all AC500 extension I/O modules without extra transfer adapters. Web server configuration built into hardware allows on-site engineers to set network parameters and maintain stable data transmission of ABB PM590-ETH with ABB local HMI touch panels.

Cross-brand Compatibility

Exclusive AC500 internal rack bus protocol stops direct hardware interconnection of ABB PM590-ETH with third-party CPU racks. Independent protocol gateways become necessary to build data links connecting ABB PM590-ETH to Siemens or Schneider automation controllers. Standard Modbus TCP and Ethernet/IP industrial protocols enable ABB PM590-ETH to collect feedback signals from most aftermarket field sensors with no internal circuit refitting.

3. Lifecycle Cost Analysis

Service cycle of ABB PM590-ETH covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Ethernet port signal inspection and program backup verification for ABB PM590-ETH costs 44 USD per year, total 10-year maintenance expense: 440 USD

Spare part replacement cost: Main processing core failure of ABB PM590-ETH generally occurs once every 6 years, single spare CPU price: 546 USD, total replacement expense within 10 years: 546 USD

Retrofit expense saving: Original cabinet wiring and rack slot structure fully match ABB PM590-ETH during control system upgrading, saving 328 USD extra construction labor cost compared with incompatible substitute PLC CPU modules

Total cumulative running cost for single ABB PM590-ETH across ten service years: 658 USD
