1. Core Technical Parameters

Internal Supply：12–36 VDC drive bus power

Supported Protocol：CANopen DS301 + CiA402 Drive Profile

Max Communication Speed：1 Mbit/s

Configurable Node ID：1–127

Galvanic Isolation：500 V between bus and drive

Operating Temperature：-40℃ ~ +85℃

Mounting Form：Internal drive control slot plug-in

2. Compatibility & Expandability

Same-brand Compatibility

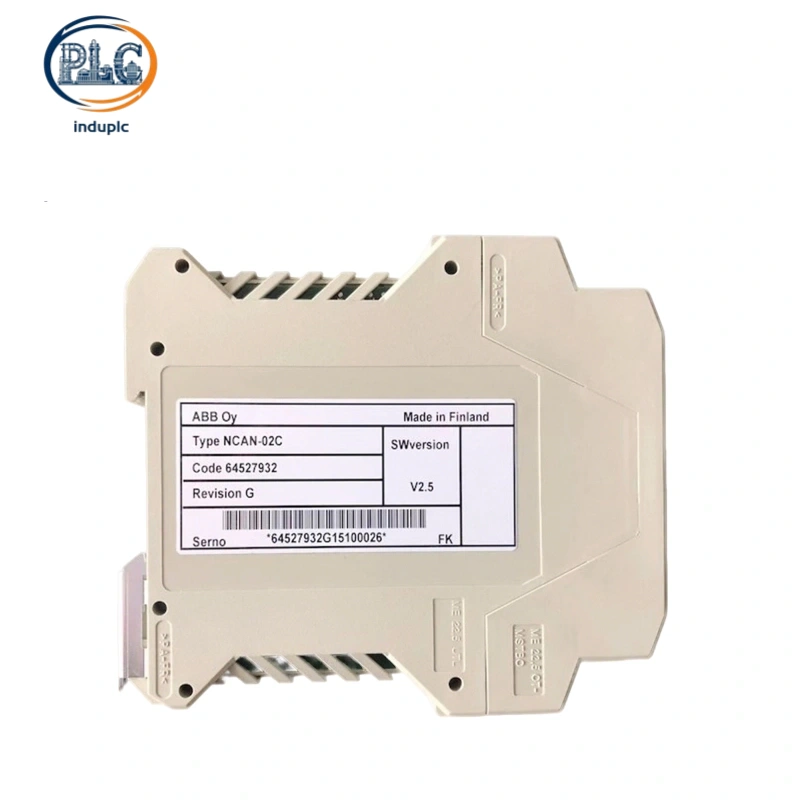

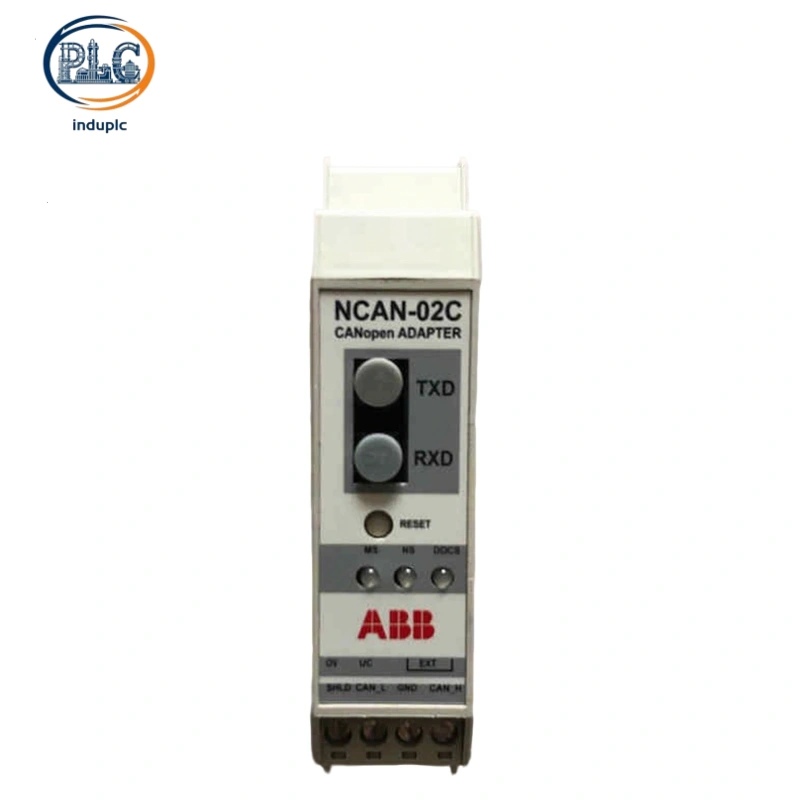

ABB NCAN-02C is a dedicated CANopen fieldbus adapter developed for ABB low and medium voltage variable frequency drives. Drive service technicians install multiple ABB NCAN-02C inside ACS600 and ACS800 inverter cabinets to build multi-axis motion control CAN bus networks for conveyor and packaging production lines. ABB NCAN-02C inserts dedicated internal control board slots and exchanges real-time speed, torque and fault data with ABB main drive control units without auxiliary signal transfer terminals. DIP coding switches on module front panels complete node address setup to maintain stable cyclic communication between ABB NCAN-02C and ABB AC800M master control CPUs.

Cross-brand Compatibility

Exclusive DDCS internal fiber bus architecture of ABB drive units blocks direct hardware matching of ABB NCAN-02C with non-ABB inverters. Independent CANopen protocol transfer gateways become mandatory to build data links connecting ABB NCAN-02C with third-party PLC hosts produced by Siemens or Rockwell. Global unified CANopen industrial standard enables ABB NCAN-02C to transmit drive operating feedback to most aftermarket motion controllers with no internal circuit reconstruction.

3. Lifecycle Cost Analysis

Service cycle of ABB NCAN-02C is fixed as 10 years, exchange rate:1USD=7.2CNY, purchase and installation expenses are excluded from all cost accounting

Annual routine maintenance cost: CAN bus signal waveform inspection and internal dust clearance for ABB NCAN-02C costs 27 USD per year, total 10-year maintenance expense: 270 USD

Spare part replacement cost: CAN transceiver chip aging failure of ABB NCAN-02C generally occurs once every 8 years, single spare adapter price: 364 USD, total replacement expense within 10 years: 364 USD

Retrofit expense saving: Original drive internal wiring layout fully fits ABB NCAN-02C during equipment modernization projects, saving 206 USD extra wiring labor cost compared with incompatible substitute CANopen adapters

Total cumulative running cost for single ABB NCAN-02C across ten service years: 430 USD
