1. Core Technical Parameters

Supply Voltage：24 VDC

Signal Channels：4 AI + 2 AO

Analog Range：0–10 V / 4–20 mA

Channel Isolation：1500 VDC group isolation

Resolution：12-bit conversion precision

Operating Temperature：-20℃ ~ +70℃

Mounting Standard：DIN rail TS35

2. Compatibility & Expandability

Same-brand Compatibility

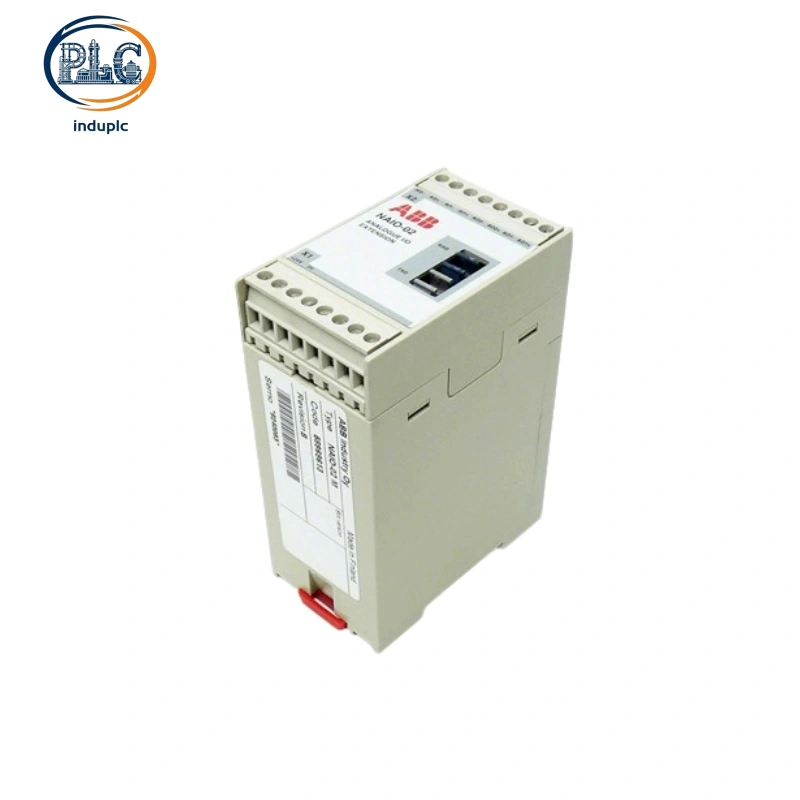

ABB NAIO-02 is a compact mixed analog I/O module matched for ABB ACS series drive control systems. Drive maintenance staff install multiple ABB NAIO-02 beside main inverter units to expand analog signal access for motor speed and torque monitoring. ABB NAIO-02 establishes direct signal connection with ABB control panels and fieldbus adapters without extra signal conditioning terminal blocks. Surface coding switches support range selection to maintain stable analog data transmission when ABB NAIO-02 links with factory ABB pressure and flow transmitters.

Cross-brand Compatibility

Dedicated internal signal pinout prevents direct matching of ABB NAIO-02 with third-party inverter control racks. External transfer terminal strips are required to build signal links connecting ABB NAIO-02 to Siemens and Schneider frequency converters. Global universal 4–20mA and 0–10V analog standards let ABB NAIO-02 collect output signals from most aftermarket field transducers with no internal circuit modification.

3. Lifecycle Cost Analysis

Service cycle of ABB NAIO-02 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Analog channel calibration and internal dust clearance for ABB NAIO-02 costs 27 USD per year, total 10-year maintenance expense: 270 USD

Spare part replacement cost: Analog conversion circuit aging failure of ABB NAIO-02 generally occurs once every 8 years, single spare module price: 364 USD, total replacement expense within 10 years: 364 USD

Retrofit expense saving: Existing motor cabinet signal cables fully fit ABB NAIO-02 during drive system upgrade, saving 206 USD extra wiring labor cost compared with incompatible substitute analog I/O modules

Total cumulative running cost for single ABB NAIO-02 across ten service years: 428 USD
