1. Core Technical Parameters

Backplane Power：24 VDC

Digital Input Channels：16 channels

Input Signal Level：24 VDC sink/source

Channel Isolation：Group-wise 2000 VAC

Response Delay：≤ 0.5 ms

Operating Temperature：-20℃ ~ +70℃

Rack Platform：ABB S800 I/O backplane

2. Compatibility & Expandability

Same-brand Compatibility

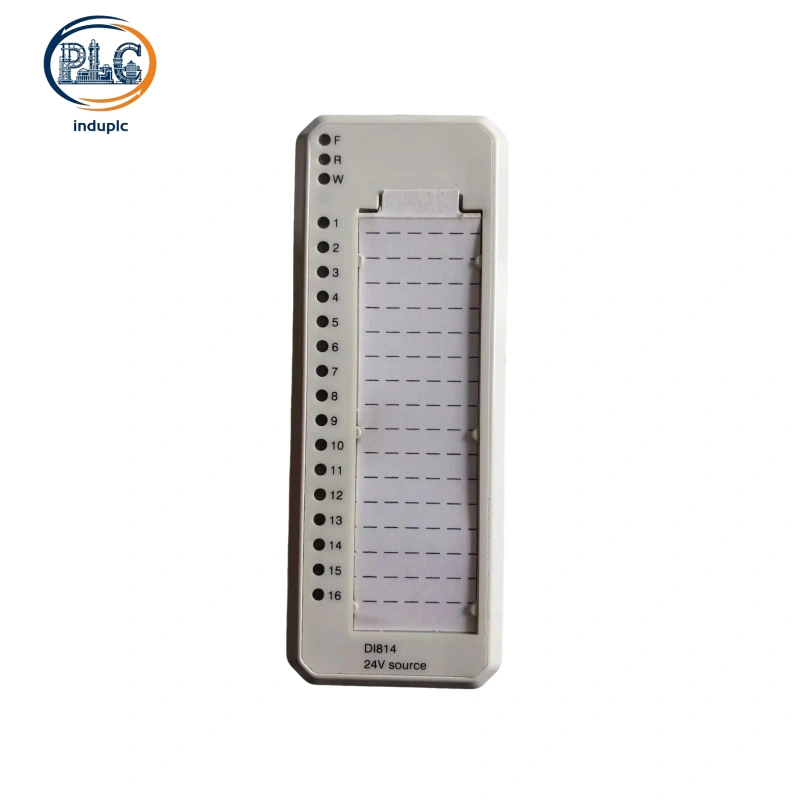

ABB DI814 is digital input module developed for ABB S800 distributed I/O system. Automation wiring technicians stack multiple ABB DI814 on DSBB backplanes to expand discrete signal acquisition ports for factory control cabinets. ABB DI814 locks onto standard single rack slots and forwards switch and proximity sensor signals to ABB AC800M CPU units without extra signal relay terminals. Front diagnostic LEDs support real-time signal monitoring to maintain stable signal collection when ABB DI814 pairs with ABB TU800 series terminal bases.

Cross-brand Compatibility

Exclusive S800 backplane bus protocol stops direct hardware matching of ABB DI814 with third-party PLC racks. External transfer terminal blocks are required to build signal links connecting ABB DI814 to Siemens and Schneider control hardware. Universal 24 VDC discrete signal standards allow ABB DI814 to capture feedback signals from most aftermarket proximity switches with no internal circuit modification.

3. Lifecycle Cost Analysis

Service cycle of ABB DI814 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation costs are excluded from all cost statistics

Annual routine maintenance cost: Channel continuity inspection and internal dust clearance for ABB DI814 costs 27 USD per year, total 10-year maintenance expense: 270 USD

Spare part replacement cost: Input optocoupler aging failure of ABB DI814 generally occurs once every 8 years, single spare module price: 364 USD, total replacement expense within 10 years: 364 USD

Retrofit expense saving: Original cabinet field wiring fully adapts to ABB DI814 during control system upgrade, saving 206 USD extra wiring labor cost compared with incompatible substitute digital input modules

Total cumulative running cost for single ABB DI814 across ten service years: 428 USD
