1. Core Technical Parameters

Supply Voltage：24 VDC

Channel Layout：16 DI + 16 DO

Per Channel Output Load：0.5 A

Communication Protocols：PROFIBUS, Modbus

Operating Temperature：-20℃ ~ +70℃

Protection Grade：IP20

Applicable Platform：ABB UNITROL F control rack

2. Compatibility & Expandability

Same-brand Compatibility

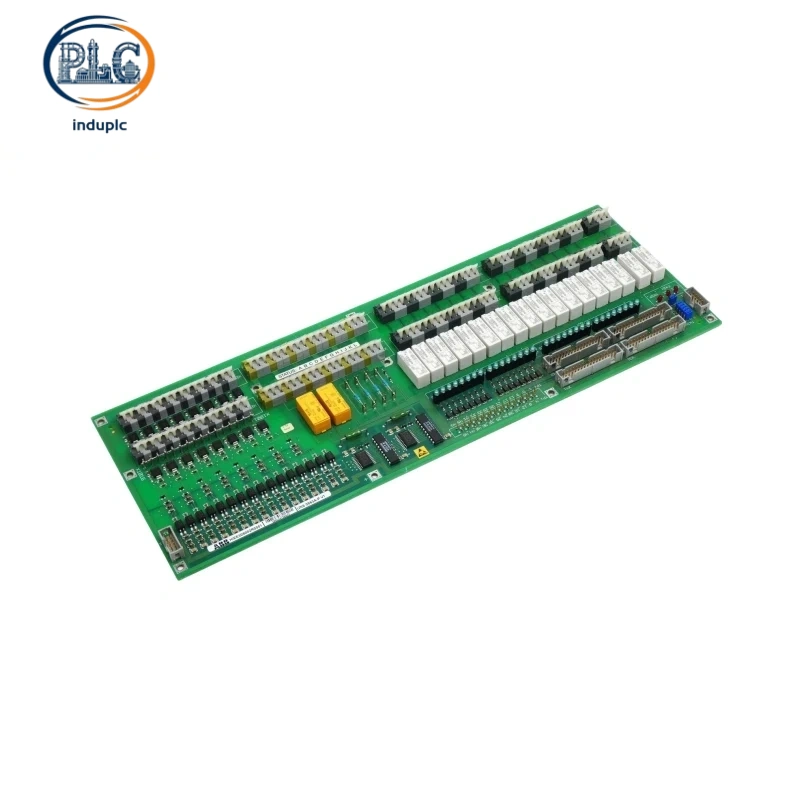

ABB UNS0863A-P serves as dedicated digital I/O board for ABB UNITROL F excitation control system. Power plant maintenance technicians install multiple ABB UNS0863A-P on cabinet backplanes to expand digital signal acquisition and output ports for generator excitation loops. ABB UNS0863A-P locks into standard single-width rack slots and transmits status signals with ABB UNS series power and analog modules without extra signal transfer terminal blocks. On-board LED diagnostic indicators help field crews monitor operating status of ABB UNS0863A-P and sustain stable logic interaction with original ABB protection relays and switching actuators.

Cross-brand Compatibility

Exclusive UNITROL F internal rack bus architecture blocks direct hardware docking of ABB UNS0863A-P with third-party control hosts. External protocol conversion gateway modules become mandatory to build signal links connecting ABB UNS0863A-P to Siemens or Schneider PLC equipment. Universal 24VDC digital signal industrial standards enable ABB UNS0863A-P to collect switch feedback signals from most aftermarket auxiliary sensors with no internal circuit reconstruction.

3. Lifecycle Cost Analysis

Service cycle of ABB UNS0863A-P is fixed at 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost accounting

Annual routine maintenance cost: Channel continuity test and internal dust clearance for ABB UNS0863A-P costs 34 USD per year, total 10-year maintenance expense: 340 USD

Spare part replacement cost: Channel drive circuit aging failure of ABB UNS0863A-P generally occurs once every 7 years, single spare module price: 442 USD, total replacement expense within 10 years: 442 USD

Retrofit expense saving: Existing field signal wiring harness fully matches ABB UNS0863A-P during excitation cabinet renovation, saving 276 USD extra construction labor cost compared with incompatible substitute digital I/O boards

Total cumulative operating cost for single ABB UNS0863A-P across ten service years: 506 USD
