1. Core Technical Parameters

Input Voltage：100–240 VAC

Output Power：24 VDC / 8 A

Conversion Efficiency：≥88%

Hold-up Time：20 ms

Isolation Withstand：3000 VAC

Operating Temperature：0℃ ~ +60℃

Rack Matching：ABB Freelance 2000 controller rack

2. Compatibility & Expandability

Same-brand Compatibility

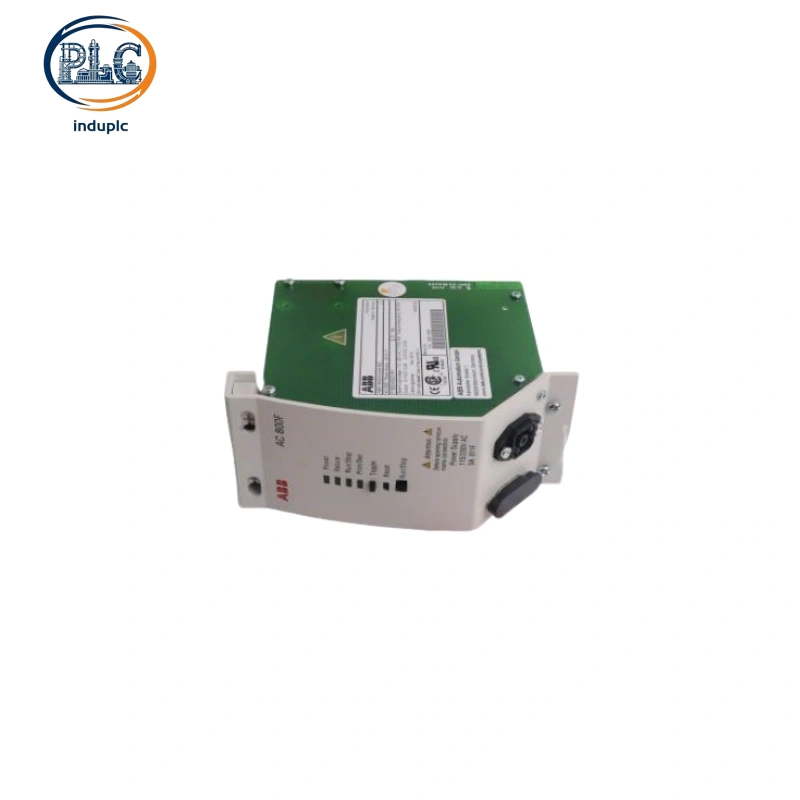

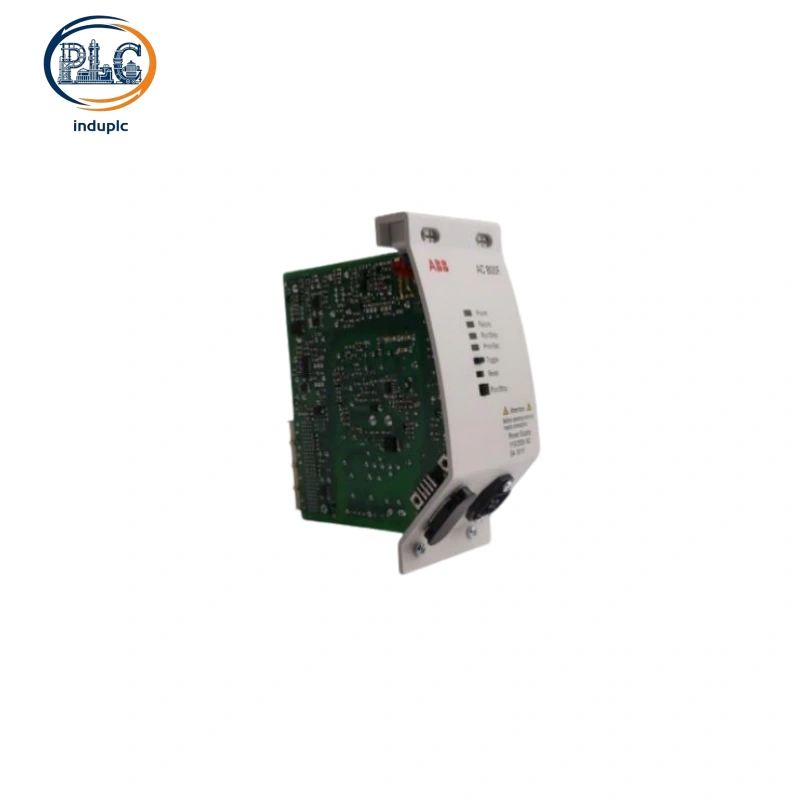

ABB SA811F is rack-mounted power supply unit customized for ABB Freelance DCS hardware. Automation maintenance crews install multiple ABB SA811F inside central control cabinets to build redundant power supply groups for continuous process industries. ABB SA811F locks into standard Freelance rack slots and supplies stabilized 24VDC power to ABB CPU modules, analog I/O boards and communication cards without external power distribution terminals. Built-in fault alarm circuits enable real-time operating status monitoring of ABB SA811F to sustain stable power output for all on-site ABB field signal acquisition hardware.

Cross-brand Compatibility

Exclusive Freelance rack backplane pin layout prevents direct physical installation of ABB SA811F on third-party PLC chassis. External terminal distribution blocks are required to transmit power from ABB SA811F to Siemens or Schneider control modules. Standard 24VDC output specifications allow ABB SA811F to power generic third-party sensors and relay modules with no internal circuit modification.

3. Lifecycle Cost Analysis

Service cycle of ABB SA811F covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Output voltage calibration and internal dust clearance for ABB SA811F costs 34 USD per year, total 10-year maintenance expense: 340 USD

Spare part replacement cost: Rectifier circuit aging failure of ABB SA811F generally occurs once every 7 years, single spare power unit price: 446 USD, total replacement expense within 10 years: 446 USD

Retrofit expense saving: Original cabinet power wiring fully fits ABB SA811F during DCS system upgrading, saving 278 USD extra construction labor cost compared with incompatible substitute rack power supplies

Total cumulative running cost for single ABB SA811F across ten service years: 498 USD
