1. Core Technical Parameters

Backplane Supply：24 VDC

Main CPU Clock：1.0 GHz

Onboard RAM：256 MB

Program Flash Memory：512 MB

Supported Fieldbuses：PROFIBUS, Ethernet/IP, Modbus TCP

Operating Temperature：-20℃ ~ +70℃

Mounting Platform：ABB AC900F system rack

2. Compatibility & Expandability

Same-brand Compatibility

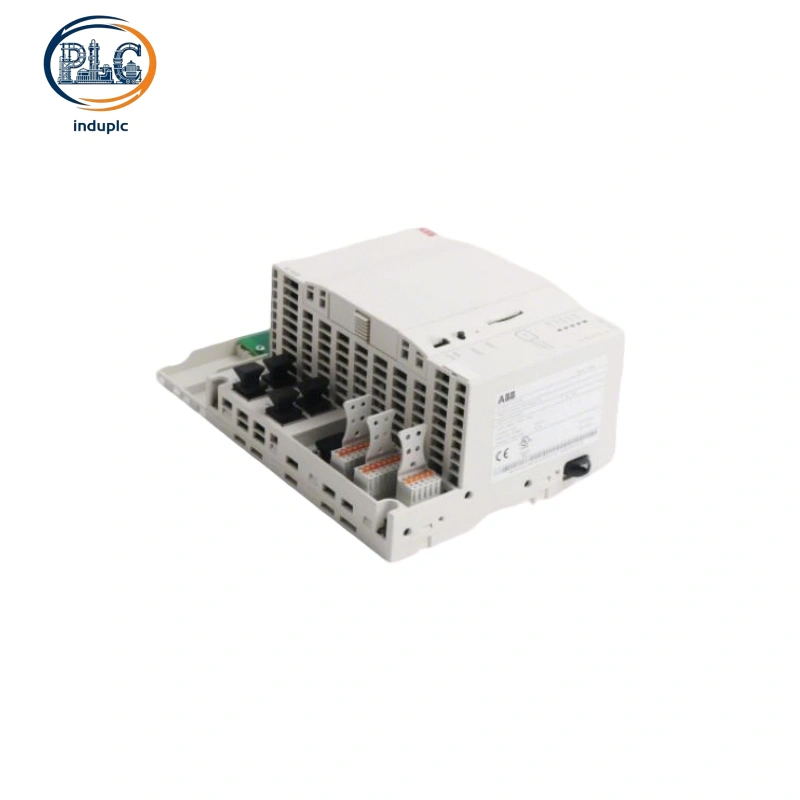

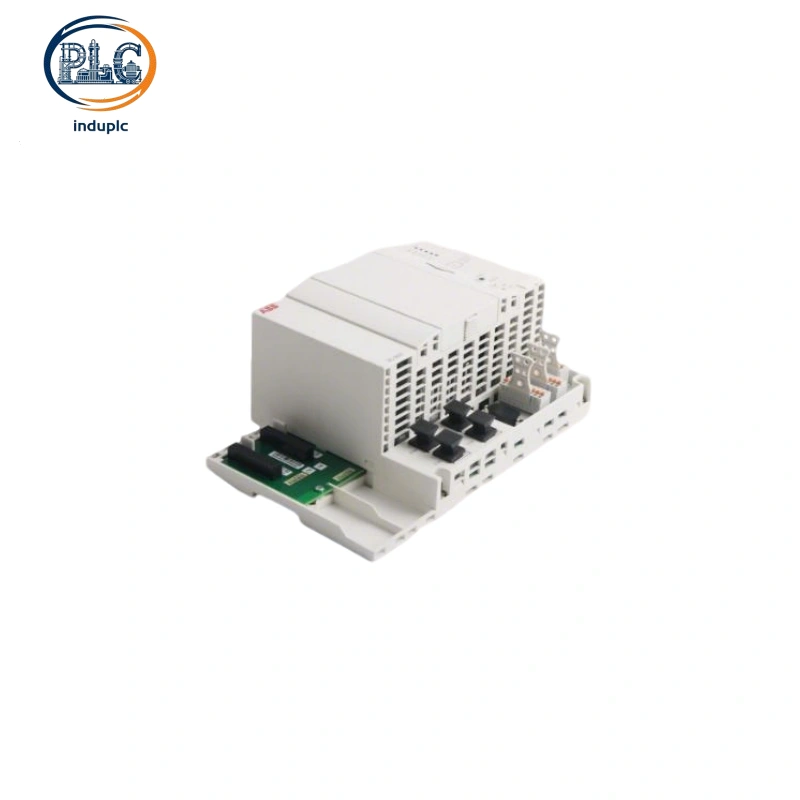

ABB PM902F is the core central processing unit for ABB AC900F distributed automation system. Process automation engineers deploy multiple ABB PM902F on cabinet backplanes to build redundant master control stations for pharmaceutical and water treatment facilities. ABB PM902F locks into dedicated rack slots and exchanges real-time process logic data with ABB S900 series I/O modules without extra signal conversion terminal boards. Front panel configuration interfaces support offline program download to maintain stable scheduling operation of ABB PM902F with all original ABB field transmitters and valve positioners.

Cross-brand Compatibility

Exclusive AC900F internal backplane bus architecture prevents direct hardware interconnection of ABB PM902F with third-party PLC controllers. Independent protocol conversion gateways are required to establish data transmission links connecting ABB PM902F to Siemens and Schneider automation hosts. Widely adopted industrial Ethernet and PROFIBUS standards allow ABB PM902F to collect measurement feedback from most aftermarket field sensors with no internal circuit refitting.

3. Lifecycle Cost Analysis

Service cycle of ABB PM902F covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Program backup verification and internal dust removal for ABB PM902F costs 44 USD per year, total 10-year maintenance expense: 440 USD

Spare part replacement cost: Main control core circuit damage of ABB PM902F generally occurs once every 6 years, single spare module price: 546 USD, total replacement expense within 10 years: 546 USD

Retrofit expense saving: Original cabinet wiring layout fully fits ABB PM902F during automation system upgrading, saving 328 USD extra construction labor cost compared with incompatible alternative CPU modules

Total cumulative running cost for single ABB PM902F across ten service years: 658 USD
