1. Core Technical Parameters

Backplane Supply：5 VDC

Onboard RAM：2 MB

Program Storage Flash：4 MB

Internal Bus Protocol：MasterBus 300

Data Processing Cycle：1 ms minimum

Withstand Isolation Voltage：1500 VDC

Applicable Rack：ABB Advant Controller 31 Series Chassis

2. Compatibility & Expandability

Same-brand Compatibility

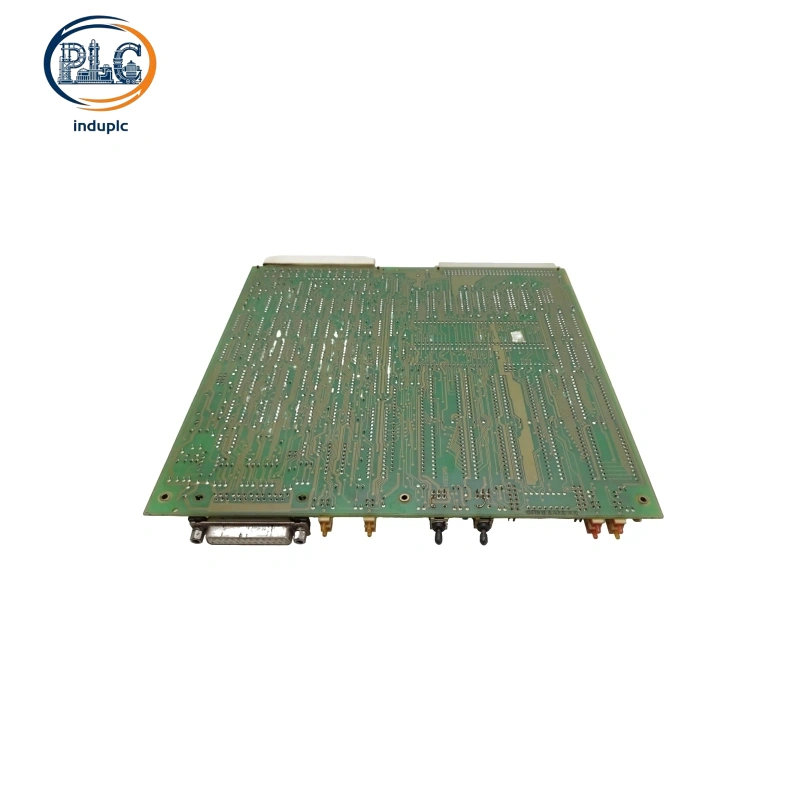

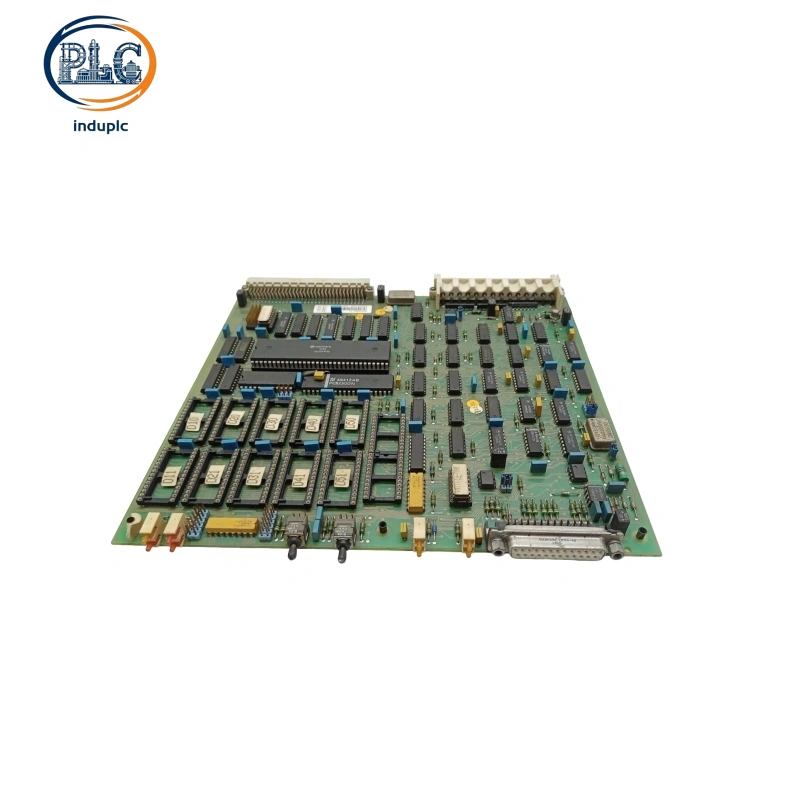

ABB DSPC155 is the core main processor unit matched for ABB Advant 31 legacy control platform. Process maintenance engineers install multiple ABB DSPC155 on rack backplanes to construct redundant master control stations for metallurgy and pulp continuous production lines. ABB DSPC155 inserts dedicated single-width rack slots and processes logic operations with ABB DSCS series communication boards and DSCA interface modules without extra signal transfer adapters. Front panel diagnostic LED groups help on-site staff track running conditions of ABB DSPC155 and maintain stable logic scheduling for all original ABB field measuring transmitters.

Cross-brand Compatibility

Exclusive MasterBus 300 proprietary bus and customized rack pin layout block direct hardware docking of ABB DSPC155 with third-party control racks. Independent protocol conversion gateways become mandatory to build data transmission links connecting ABB DSPC155 with Siemens or Schneider PLC main units. Universal serial signal forwarding logic allows ABB DSPC155 to export process operating data to most aftermarket monitoring panels with no internal circuit reconstruction.

3. Lifecycle Cost Analysis

Service cycle of ABB DSPC155 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Logic program backup inspection and internal dust clearance for ABB DSPC155 costs 41 USD per year, total 10-year maintenance expense: 410 USD

Spare part replacement cost: Main processing chip aging damage of ABB DSPC155 generally occurs once every 7 years, single spare processor board price: 506 USD, total replacement expense within 10 years: 506 USD

Retrofit expense saving: Original cabinet backplane slots and internal wiring fully fit ABB DSPC155 during legacy control system renovation, saving 322 USD extra construction labor cost compared with incompatible substitute CPU modules

Total cumulative running cost for single ABB DSPC155 across ten service years: 594 USD
