1. Core Technical Parameters

Backplane Supply：24 VDC

Analog Input Channels：8 isolated channels

Field Signal Range：4–20 mA / 0–10 VDC

Channel Isolation Grade：2500 VAC group isolation

Conversion Resolution：12-bit

Operating Temperature：-20℃ ~ +70℃

Applicable Rack：ABB Advant Master controller rack

2. Compatibility & Expandability

Same-brand Compatibility

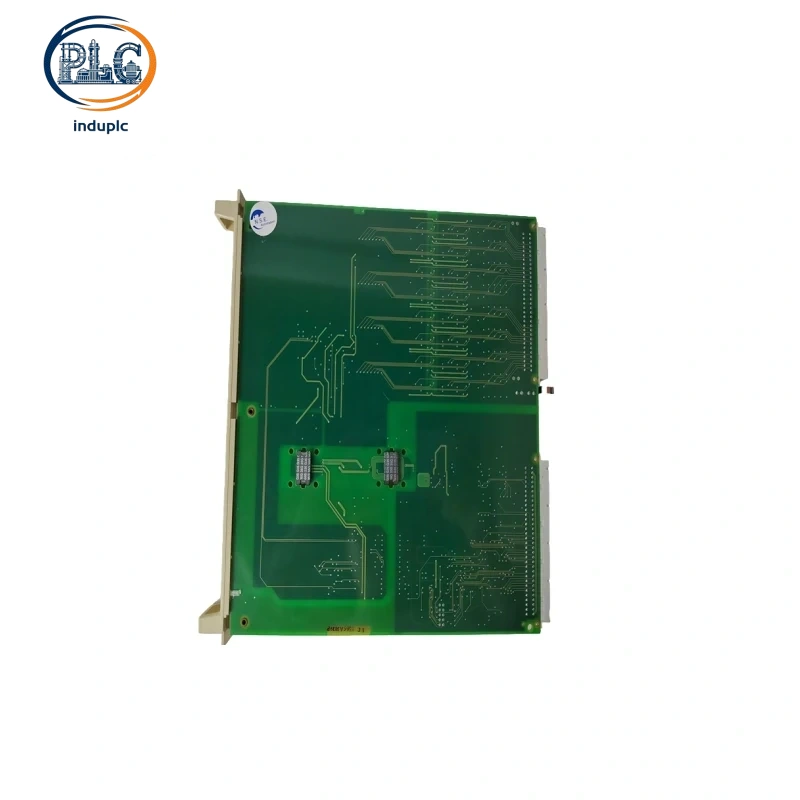

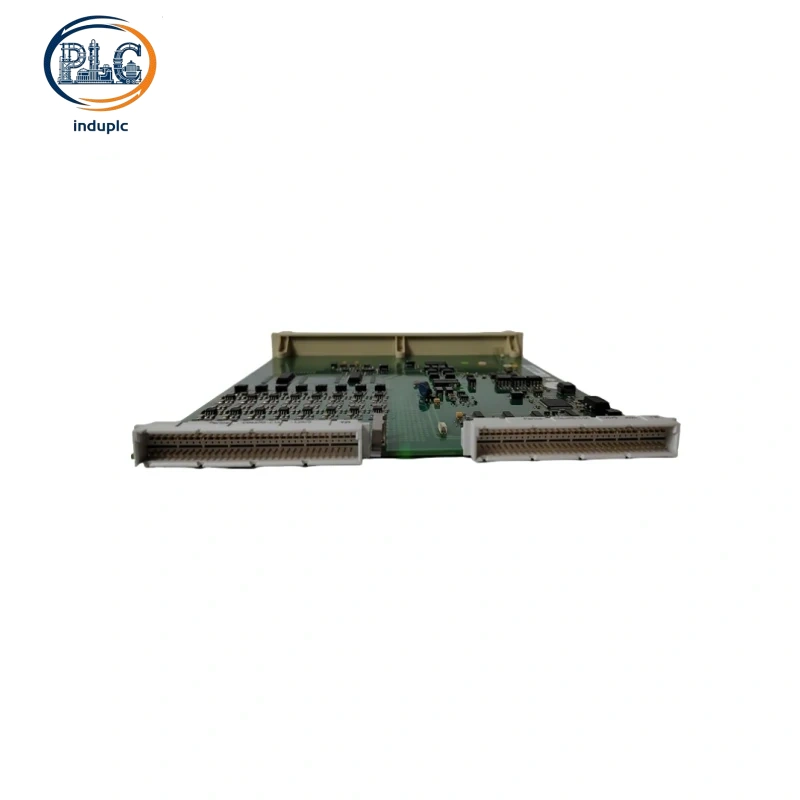

ABB DSAI133A is multi-range analog input module tailored for ABB Advant DCS control system. On-site process technicians install multiple ABB DSAI133A on cabinet backplanes to expand analog signal acquisition points for petrochemical and power generation workshops. ABB DSAI133A slides into standard single rack slots and transmits digitized field measurement data to ABB master CPU boards without extra signal conditioning terminal strips. Front panel diagnostic LED indicators support regular status inspection of ABB DSAI133A to maintain stable signal collection from all ABB pressure and flow transmitters deployed on production loops.

Cross-brand Compatibility

Proprietary Advant internal backplane bus and pin layout block direct hardware matching of ABB DSAI133A with third-party PLC racks. External signal transfer terminal adapters are required to build signal links connecting ABB DSAI133A to Siemens or Schneider control hosts. Global standard 4–20mA and 0–10V analog specifications allow ABB DSAI133A to capture feedback readings from most aftermarket field sensors with no internal circuit modification.

3. Lifecycle Cost Analysis

Service cycle of ABB DSAI133A lasts 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Channel linearity calibration and internal dust clearance for ABB DSAI133A costs 31 USD per year, total 10-year maintenance expense: 310 USD

Spare part replacement cost: Analog conversion circuit aging damage of ABB DSAI133A generally occurs once every 8 years, single spare module price: 412 USD, total replacement expense within 10 years: 412 USD

Retrofit expense saving: Original field signal wiring harness fully fits ABB DSAI133A during DCS cabinet upgrade projects, saving 250 USD extra construction labor cost compared with incompatible substitute analog input modules

Total cumulative running cost for single ABB DSAI133A across ten service years: 472 USD
