1. Core Technical Parameters

Backplane Supply：5 VDC

Analog Input Channels：16 isolated channels

Field Signal Range：4–20 mA / 0–10 V

Channel Isolation Grade：1500 VDC group isolation

Sampling Cycle：100 ms per full scan

Operating Temperature：0℃ ~ +70℃

Rack Matching：ABB Advant Master DCS chassis

2. Compatibility & Expandability

Same-brand Compatibility

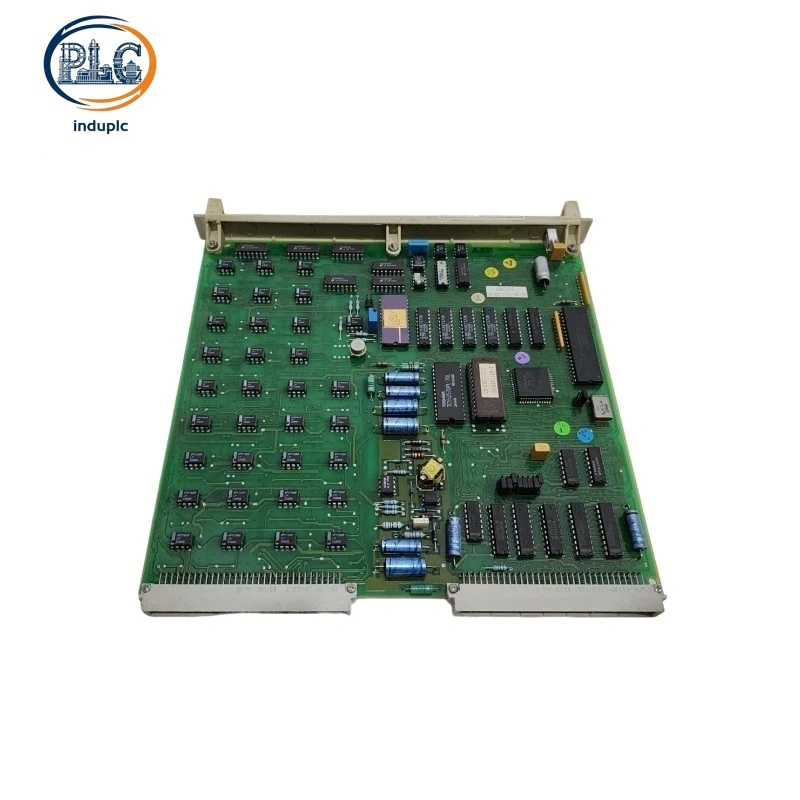

ABB DSAI133 is multi-channel analog input module dedicated to ABB Advant Master distributed control system. Plant instrument installers mount multiple ABB DSAI133 on cabinet backplanes to expand analog signal acquisition capacity for oil refining and power generation workshops. ABB DSAI133 inserts standard single-width rack slots and transmits converted digital process data to ABB DSCA series communication interface boards without extra signal conditioning terminal blocks. On-module diagnostic LED arrays allow maintenance crews to monitor real-time signal state of ABB DSAI133 and maintain stable data reading from all site-mounted ABB pressure and flow transmitters.

Cross-brand Compatibility

Exclusive Advant internal backplane bus protocol blocks direct hardware connection of ABB DSAI133 to third-party control racks. External signal transfer terminal strips become mandatory to build signal links connecting ABB DSAI133 with Siemens or Schneider PLC hosts. Standard 4–20mA and 0–10V analog industry specifications enable ABB DSAI133 to collect measurement feedback from most aftermarket field sensors with no internal circuit modification.

3. Lifecycle Cost Analysis

Service cycle of ABB DSAI133 covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Channel linearity calibration and internal dust clearance for ABB DSAI133 costs 31 USD per year, total 10-year maintenance expense: 310 USD

Spare part replacement cost: Analog signal conversion circuit aging damage of ABB DSAI133 generally occurs once every 8 years, single spare module price: 412 USD, total replacement expense within 10 years: 412 USD

Retrofit expense saving: Original field signal wiring harness fully fits ABB DSAI133 during DCS cabinet reconstruction projects, saving 248 USD extra construction labor cost compared with incompatible substitute analog input modules

Total cumulative running cost for single ABB DSAI133 across ten service years: 474 USD
