1. Core Technical Parameters

Supply Voltage：5 VDC

Bus Type：Cnet Control Network

Max Field Loop Length：2000 m

Transmission Speed：19.2 kbps

Dielectric Isolation：2000 VDC

Operating Temperature：0℃ ~ +70℃

Applicable Chassis：ABB Symphony INFI90 Harmony Rack

2. Compatibility & Expandability

Same-brand Compatibility

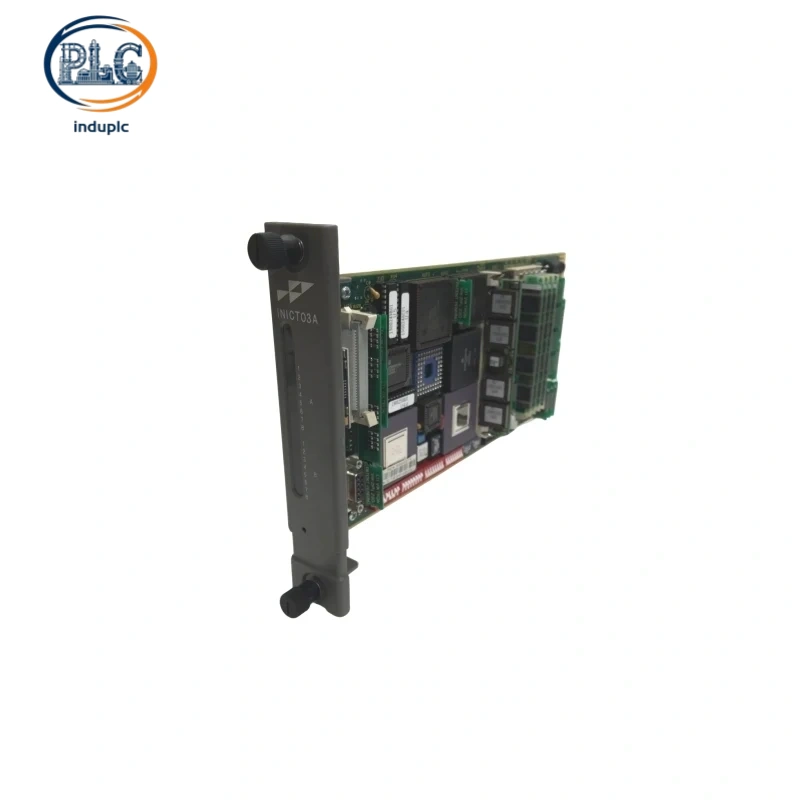

ABB INICT03A serves as dedicated Cnet communication terminal adapter for ABB Symphony DCS platform. Field automation technicians install multiple ABB INICT03A on rack backplanes to expand long-distance field bus links for large chemical and power plants. ABB INICT03A locks into standard single-slot positions and transfers process data with ABB INNPM12 network processing modules and all local I/O boards without auxiliary signal transfer terminals. Front-panel address dials allow manual station configuration to maintain steady bidirectional communication between ABB INICT03A and on-site ABB pressure, flow transmitters.

Cross-brand Compatibility

Exclusive proprietary Cnet bus architecture blocks direct physical connection of ABB INICT03A with non-ABB control hosts. External protocol conversion gateways are required to build data channels connecting ABB INICT03A to Siemens and Schneider PLC systems. General serial signal forwarding specifications make ABB INICT03A capable of outputting field measurement data to most third-party monitoring displays with no internal circuit modification.

3. Lifecycle Cost Analysis

Service cycle of ABB INICT03A covers 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from all cost statistics

Annual routine maintenance cost: Cnet signal calibration and internal dust clearance for ABB INICT03A costs 32 USD per year, total 10-year maintenance expense: 320 USD

Spare part replacement cost: Core bus interface circuit damage of ABB INICT03A generally takes place once every 8 years, single spare module price: 422 USD, total replacement expense within 10 years: 422 USD

Retrofit expense saving: Original cabinet wiring and rack slots fully fit ABB INICT03A during DCS system renovation, saving 258 USD extra construction labor cost compared with incompatible alternative communication adapters

Total cumulative running cost for single ABB INICT03A across ten service years: 484 USD
